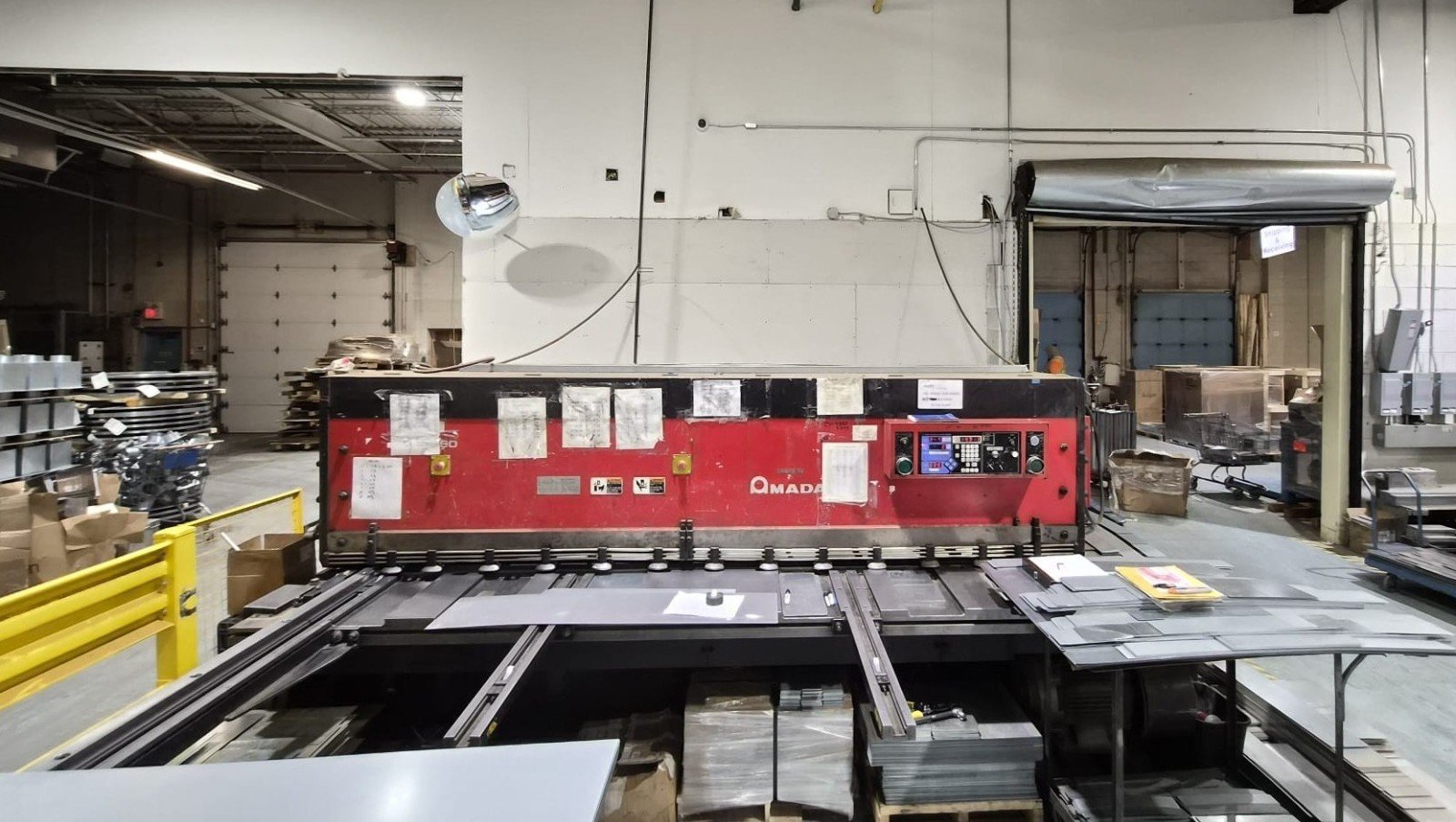

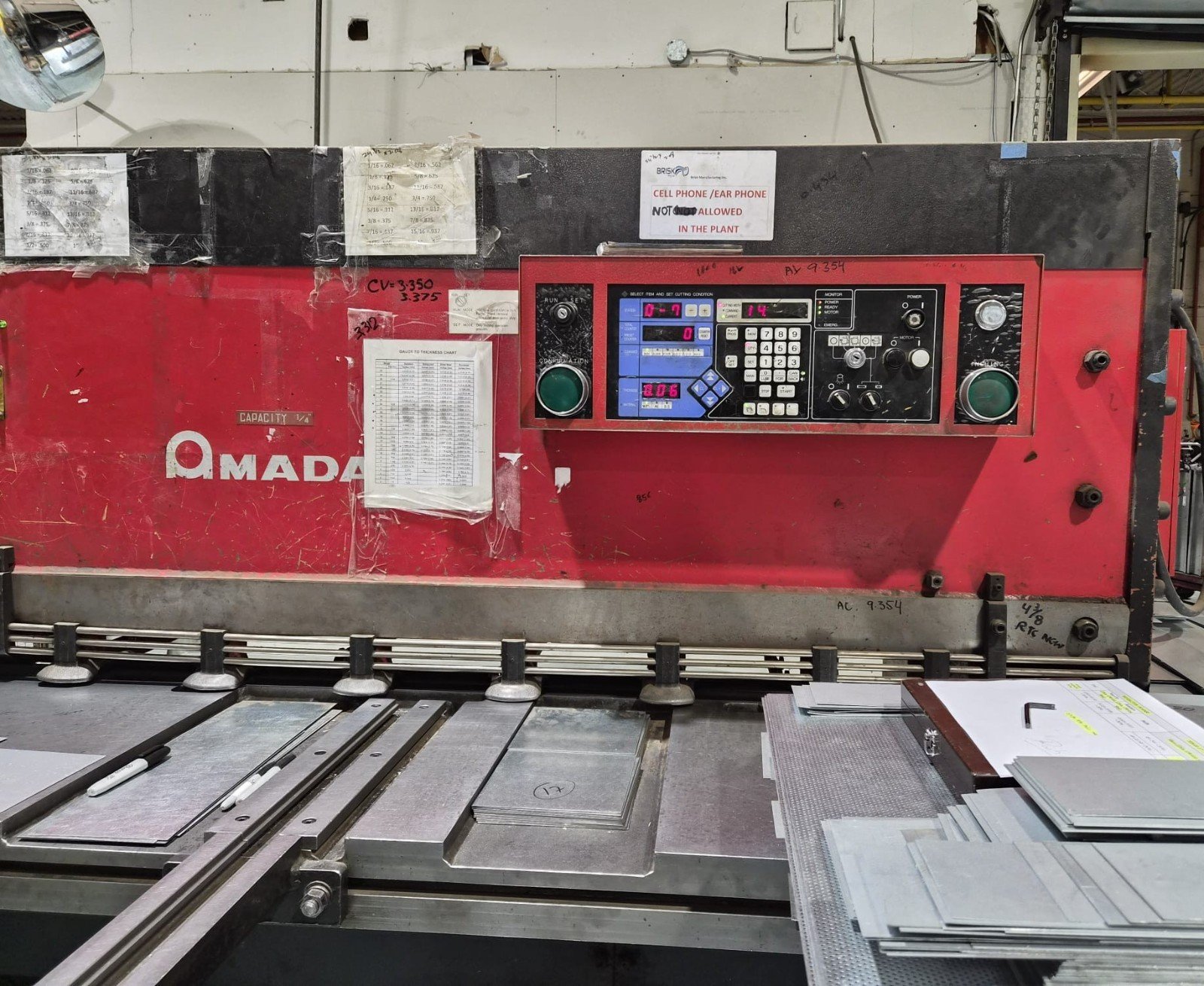

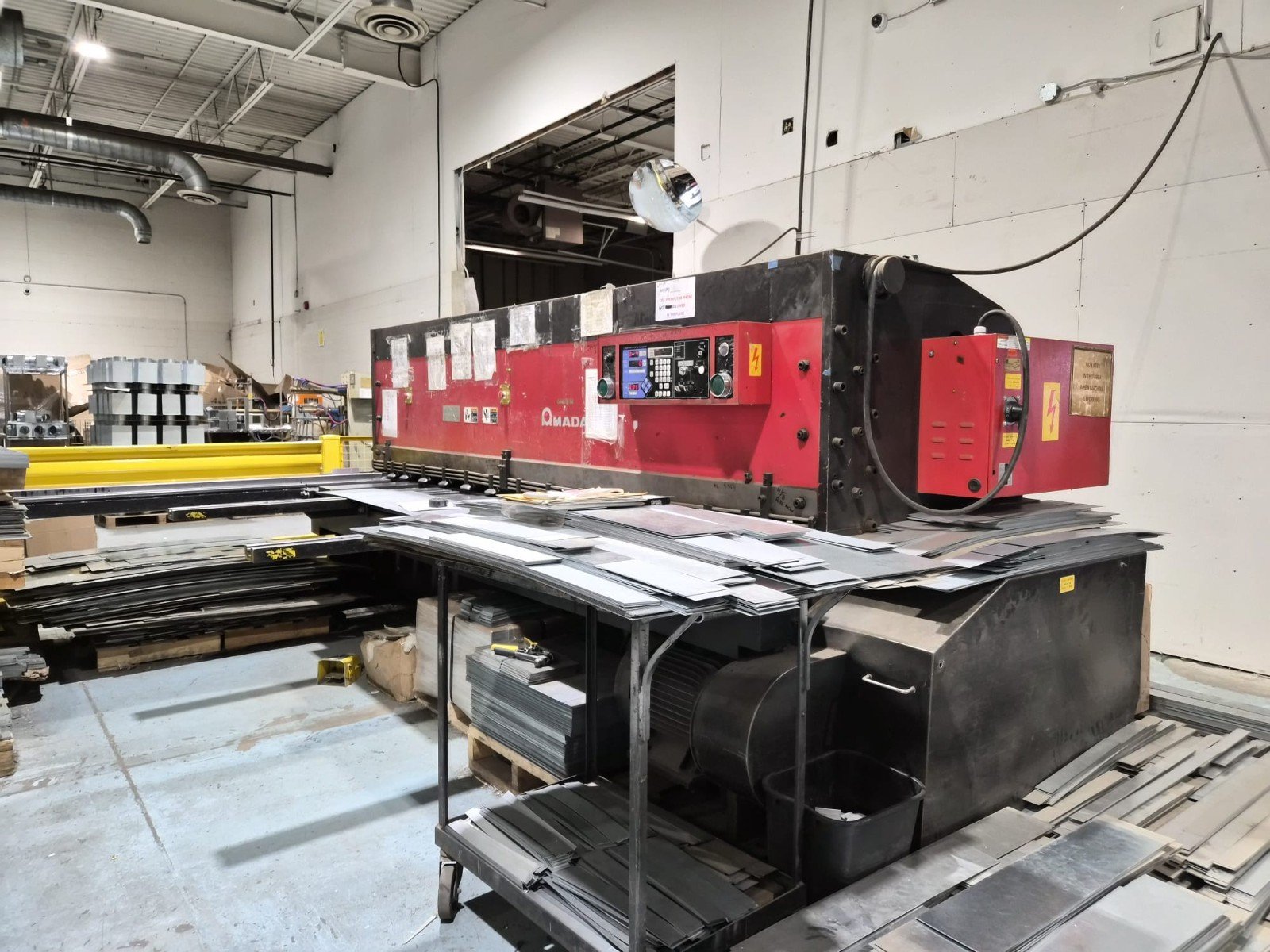

1/4 x 10′ AMADA M-3060 Mechanical Shear, 2003 – Squaring Arm, Mechanical Amada
$33,000.00
CAPACITY, MILD STEEL 1/4″
SHEARING LENGTH 120″
BLADE LENGTH 133″
RAKE ANGLE 1 DEGREE 28′
SPEED 60 SPM
BACKGAUGE RANGE .25″ – 36″
NUMBER OF HOLDDOWNS 13
MOTOR SIZE 15 HP
DIMENSIONS .. L x W x H 170″ x 80″ x 70″
WEIGHT 18,500 LBS.
Equipped With:
36″ AMADA FRONT OPERATED POWER BACKGAUGE
10′ SQUARING ARM
(2) 30″ FRONT SUPPORT ARMS
ELECTRIC FOOT SWITCH CONTROLS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
