Description

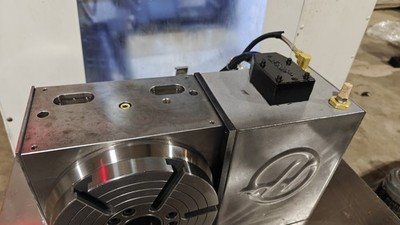

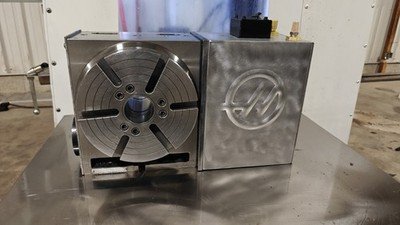

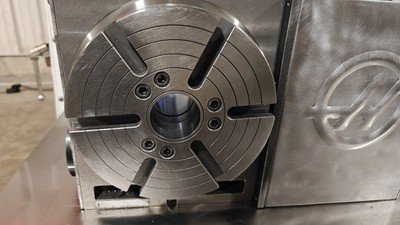

Haas 4th axis HRT-210H. Sigma 1.

In excellent condition, some signs of wear but very clean.. most importantly it’s extremely tight and ready to get back to work. Can be seen under power in Rolla, MO

Happy to arrange shipping. $200-$375 should get in anywhere in the lower 48. Local pickup is also welcome.

Platter Diameter: 8.30 in (210 mm)

Max Weight (with support): 170 lb

Max Weight (unsupported): 85 lb

T-Slots: 6 @ 60°

Through-hole: 2 in

Spindle

Max Speed: 100 °/sec

Torque (Continuous): 210 ft-lbf (285 Nm)

Runout Max: 0.0005 in (0.013 mm)

Center Height: 6.000 in (152.40 mm)

Backlash: 30 arc-sec

Brake Torque: 200 ft-lbf (271 Nm) at 100 psi (6.9 bar)

Gear Ratio: 90:1
