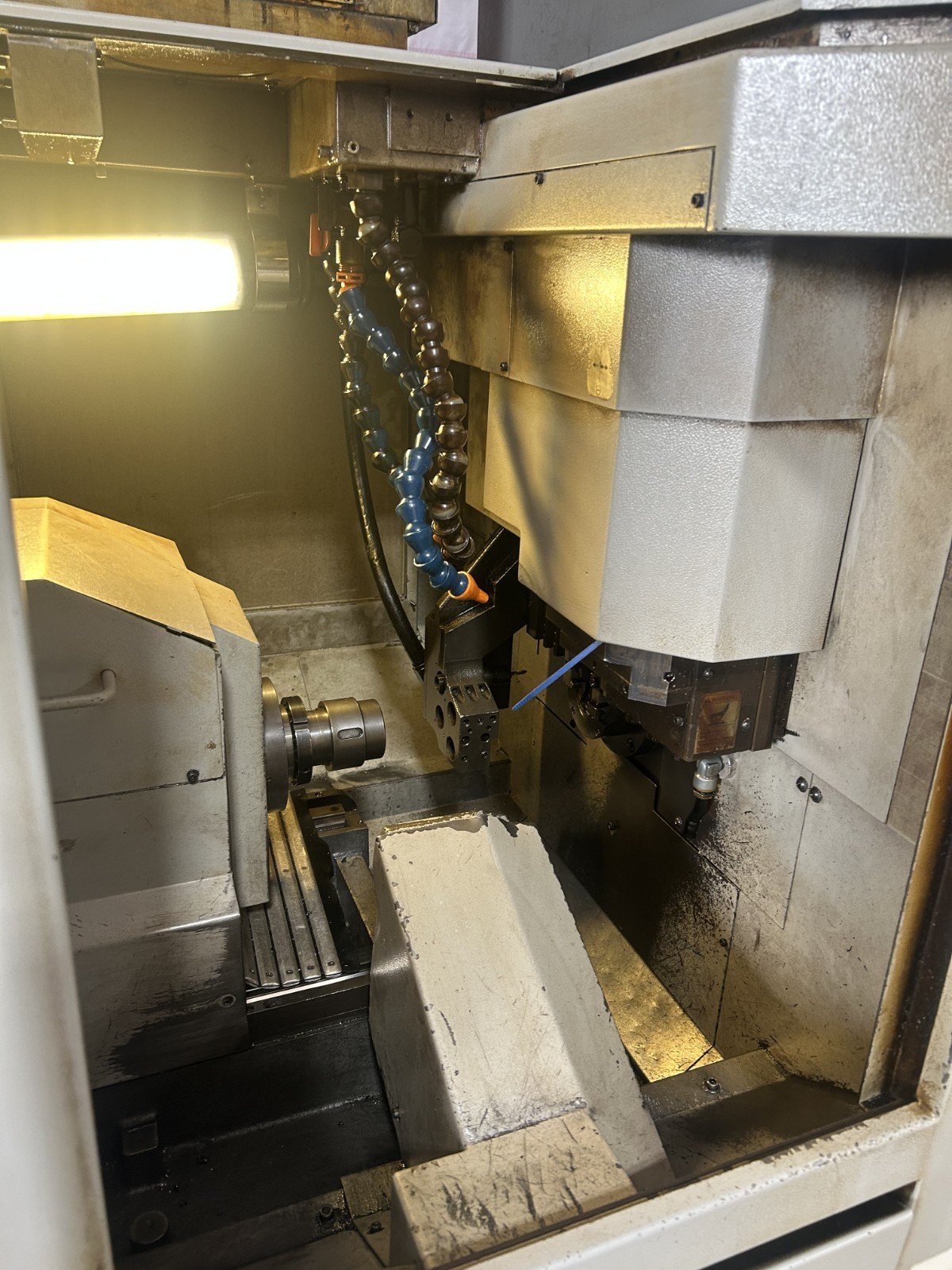

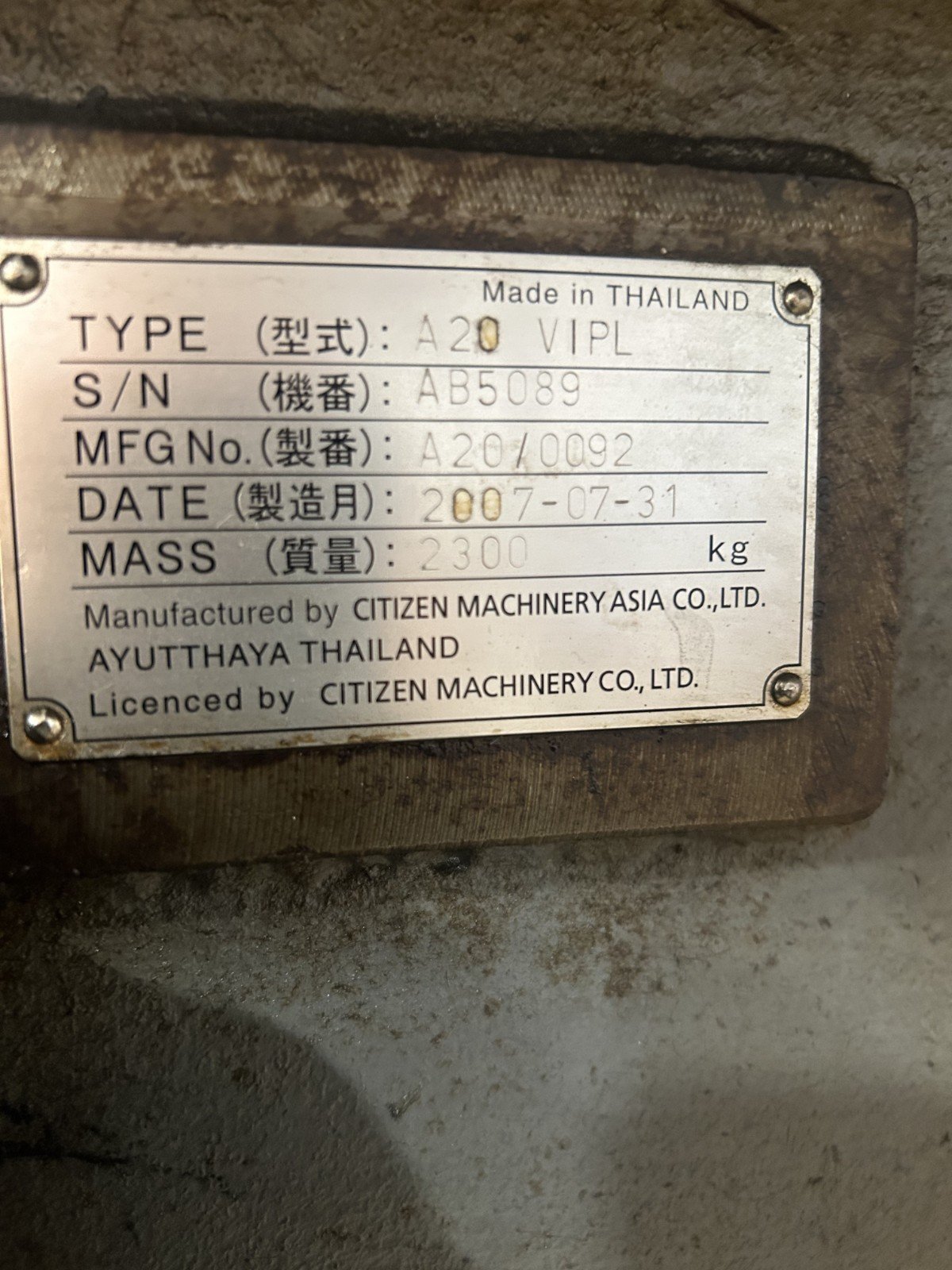

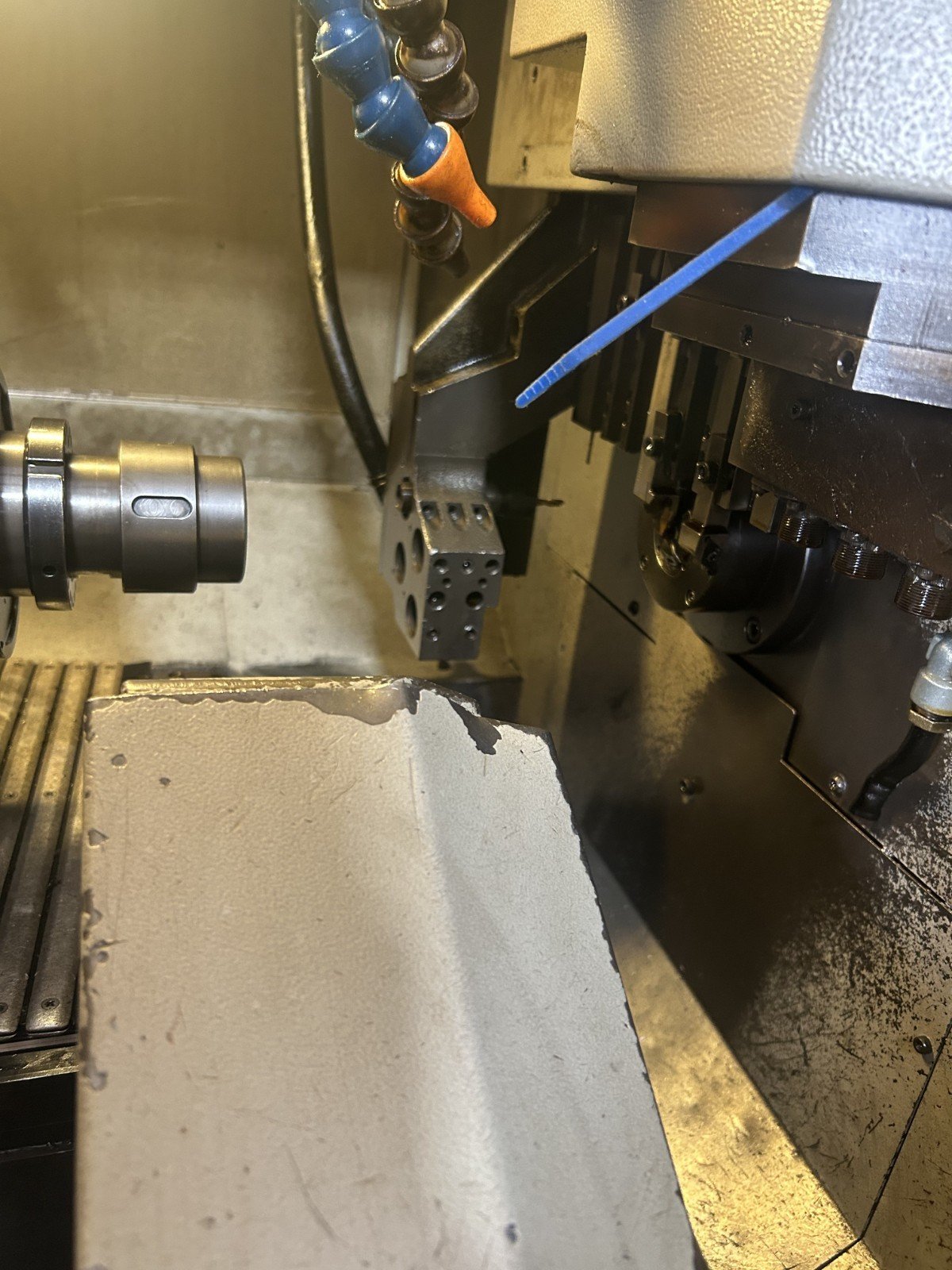

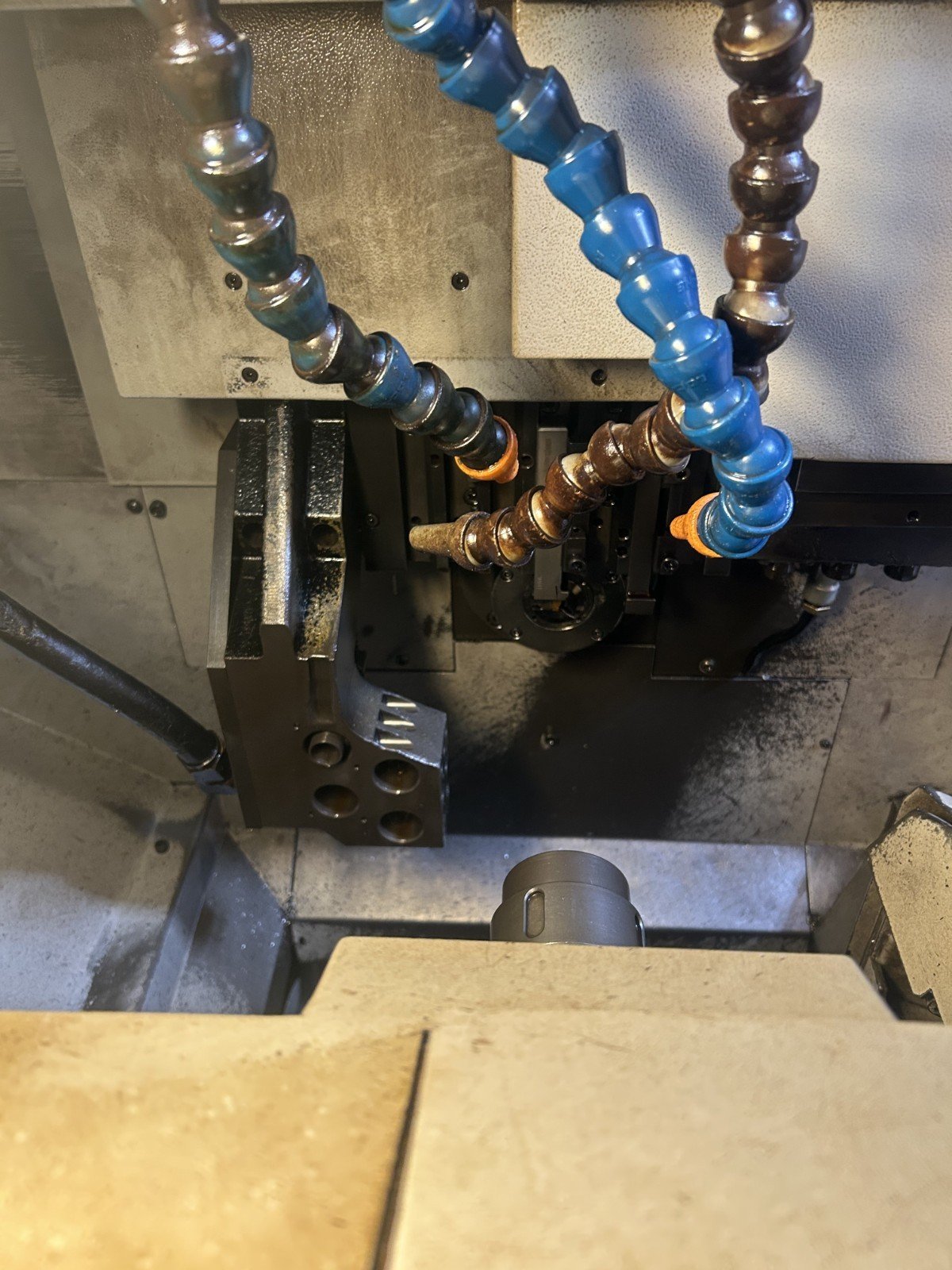

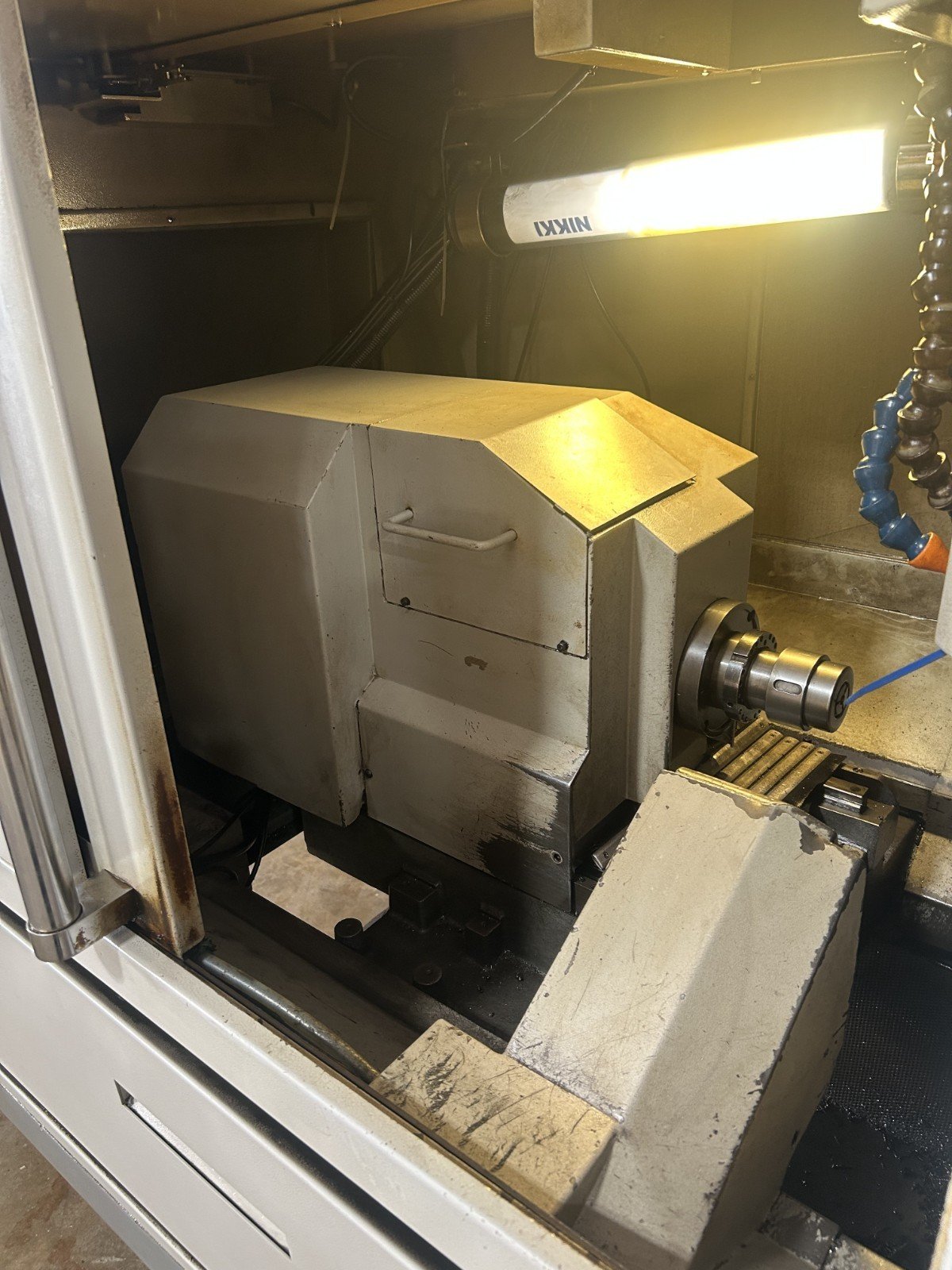

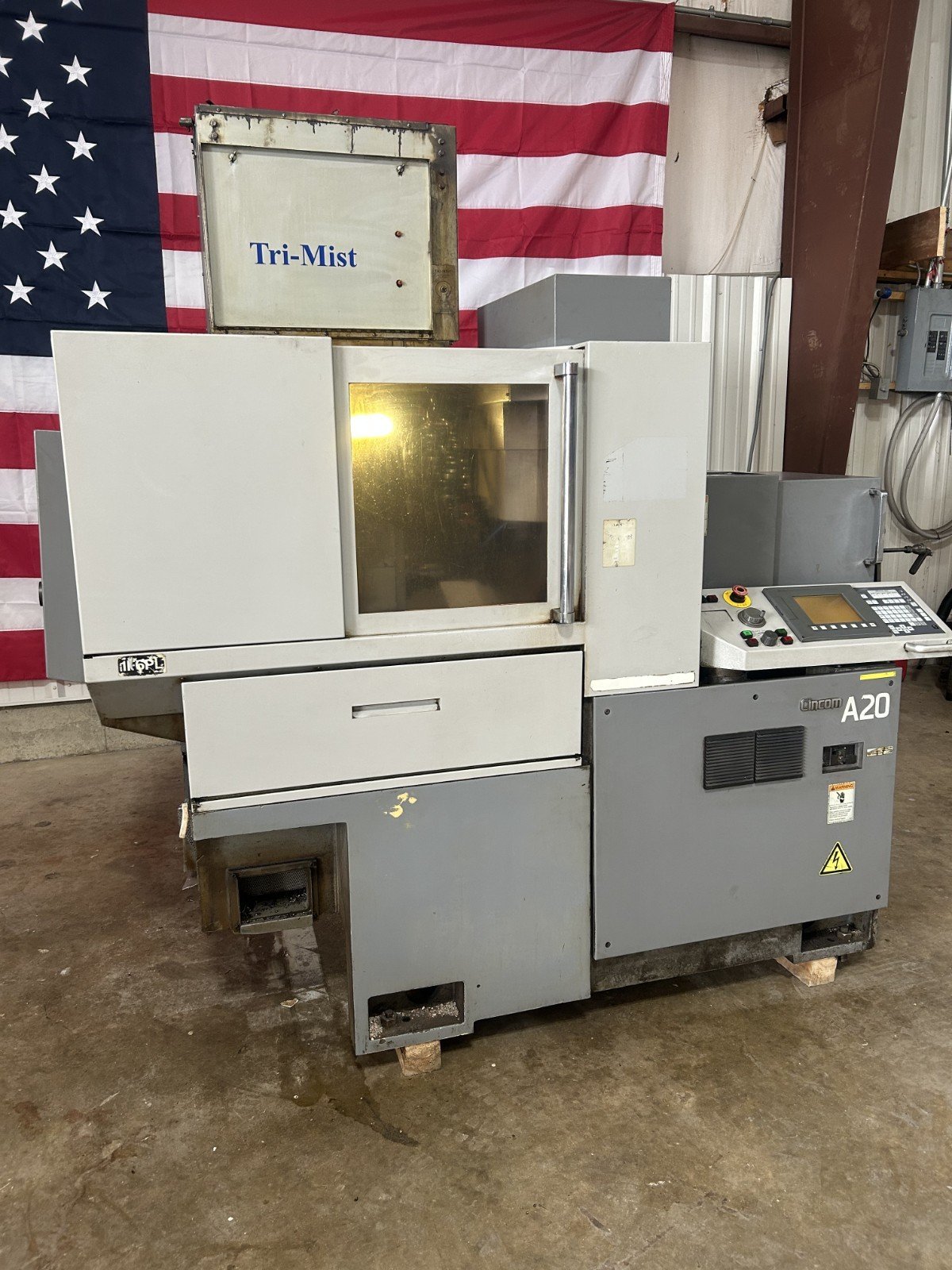

Citizen A20VIPL CNC Swiss Type Lathe, 2007 – Under Power, 12′ Bar feeder

• Maximum Turning Diameter:20 mm (.787”)

• Maximum Turning Length:165 mm (6.49”)

• Maximum Capture Length:80 mm (3.14”)

• Bar Diameter Range:2-20 mm (.078 – .787”)

• Rapid Traverse:708 IPM in X1 axis; 1259 IPM in Y1, Z1, X2, Z2 axes

• C-Axis Indexing:Every 0.001°

• Maximum Rotational Speed:8000 rpm in both main and sub-spindle

• Maximum Drive Power:3.7 HP in main spindle; 1.5 HP in sub-spindle

• Number of Tools:18

• Turing:7 (Tool #4 is 5/8”)

• Cross Drilling/Milling:3

• Front Work:4

• Maximum Rotational Speed of Driven Tools:6000 rpm

• Driven Tools Drive Power::0.75 HP

Equipped With:

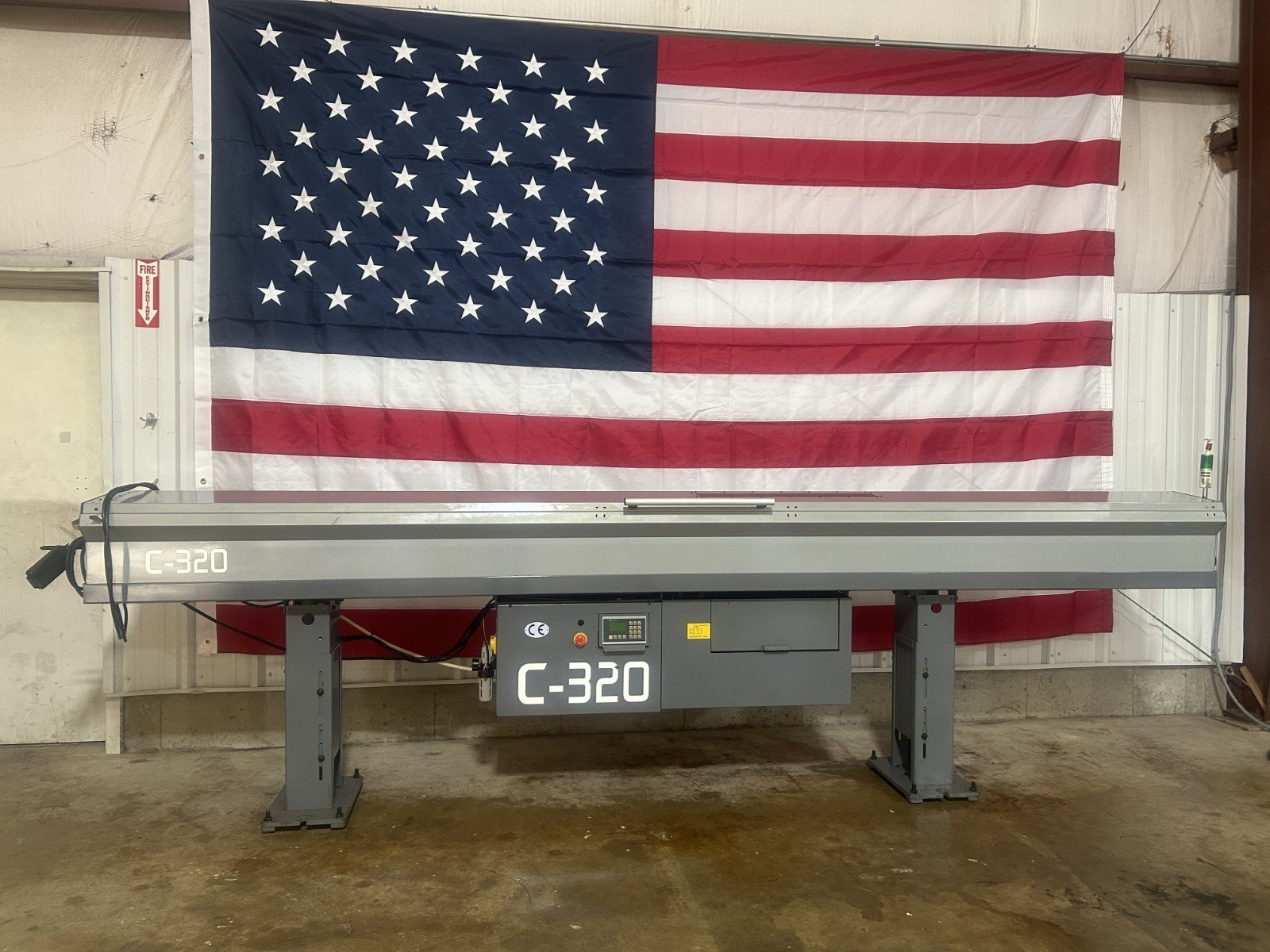

Edge Technologies C-320 12′ Bar feeder
