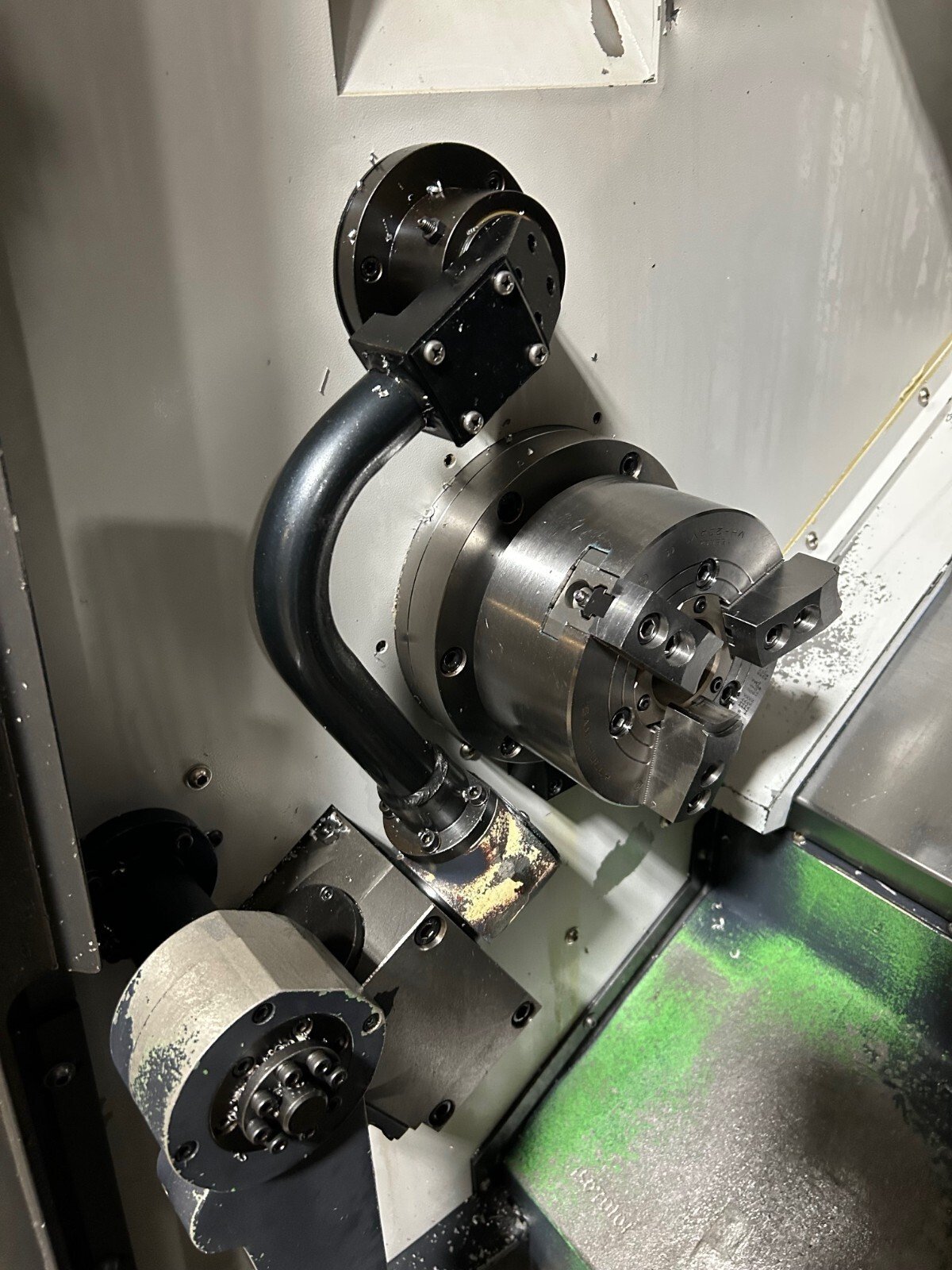

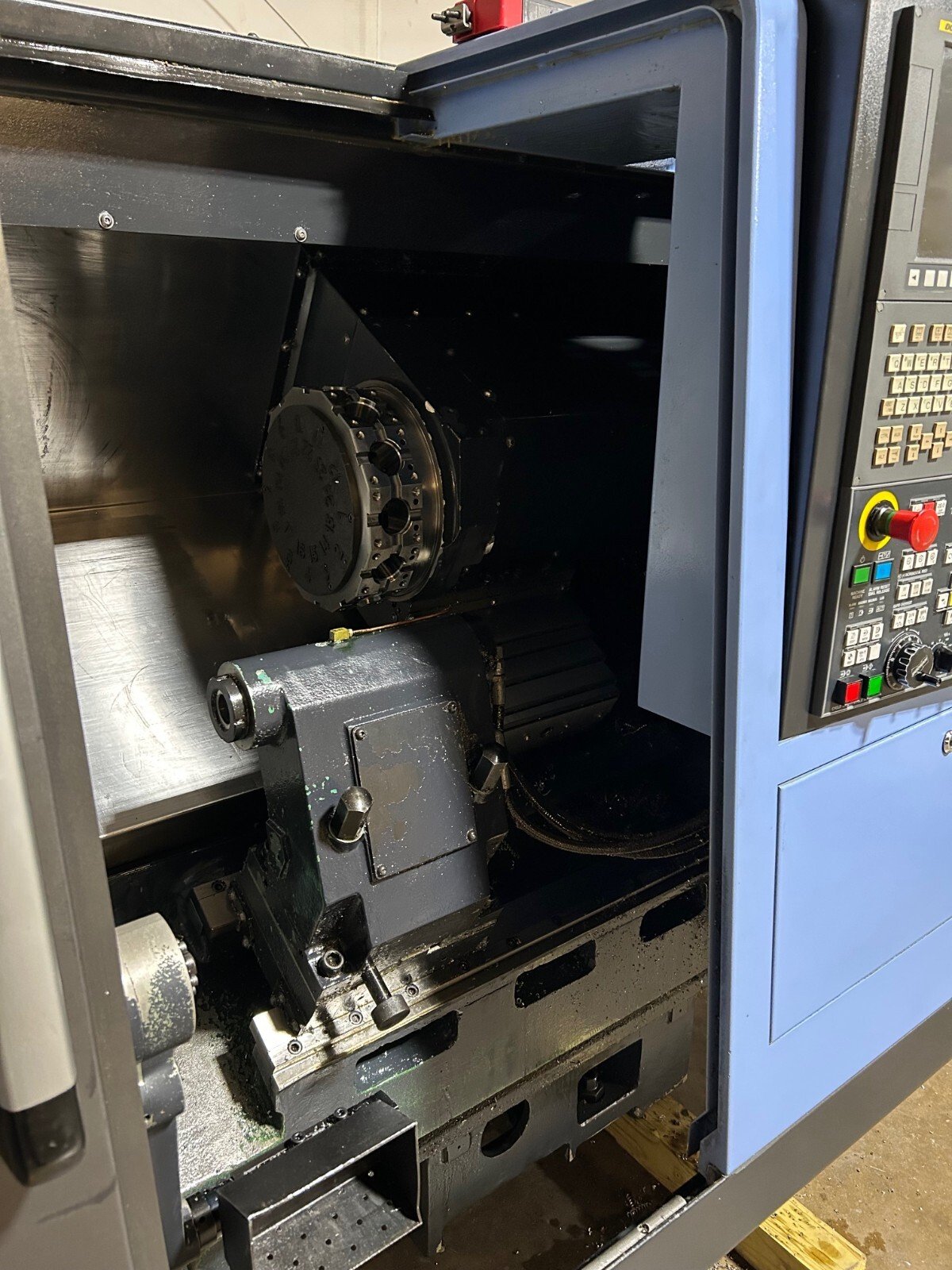

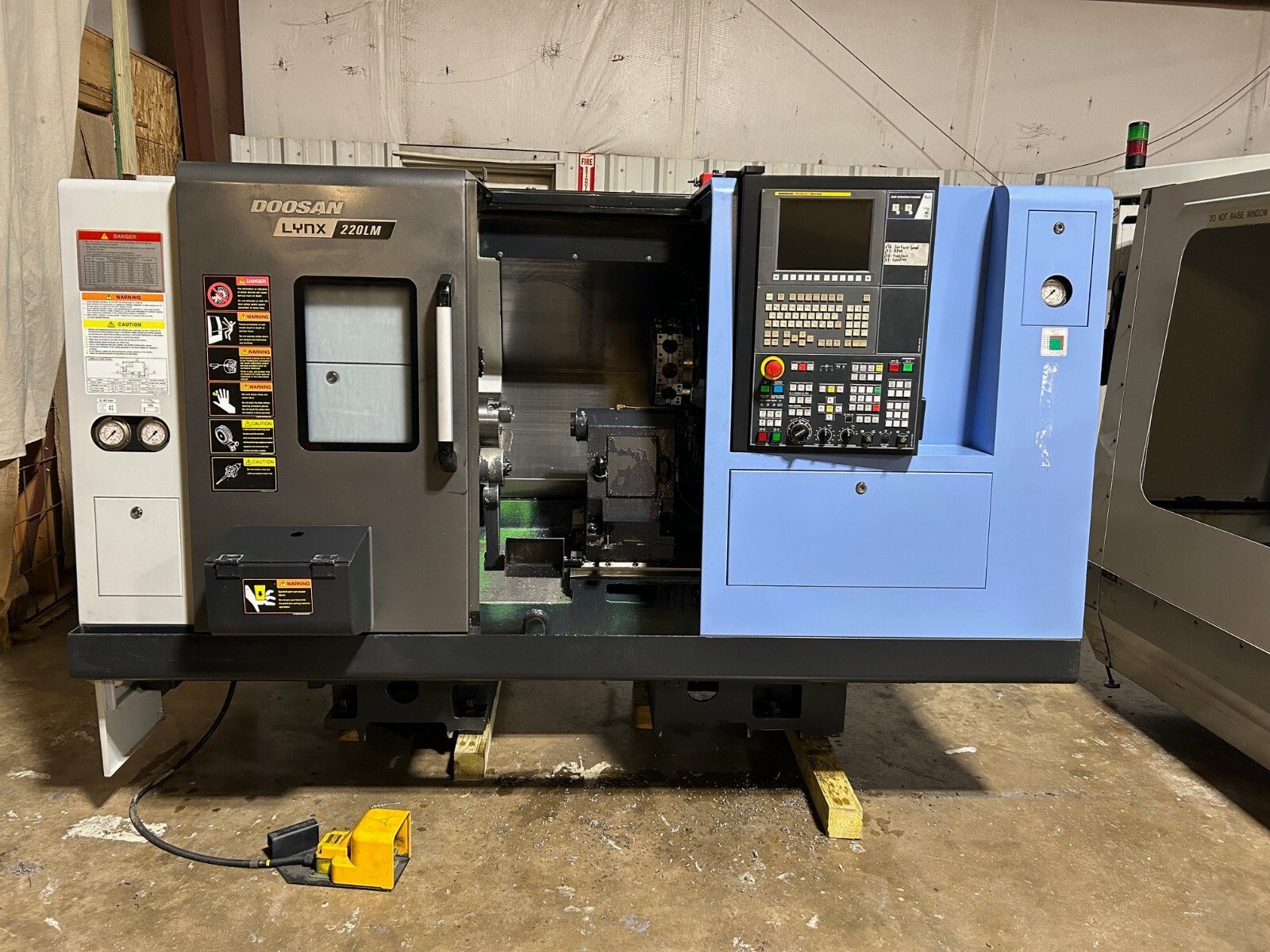

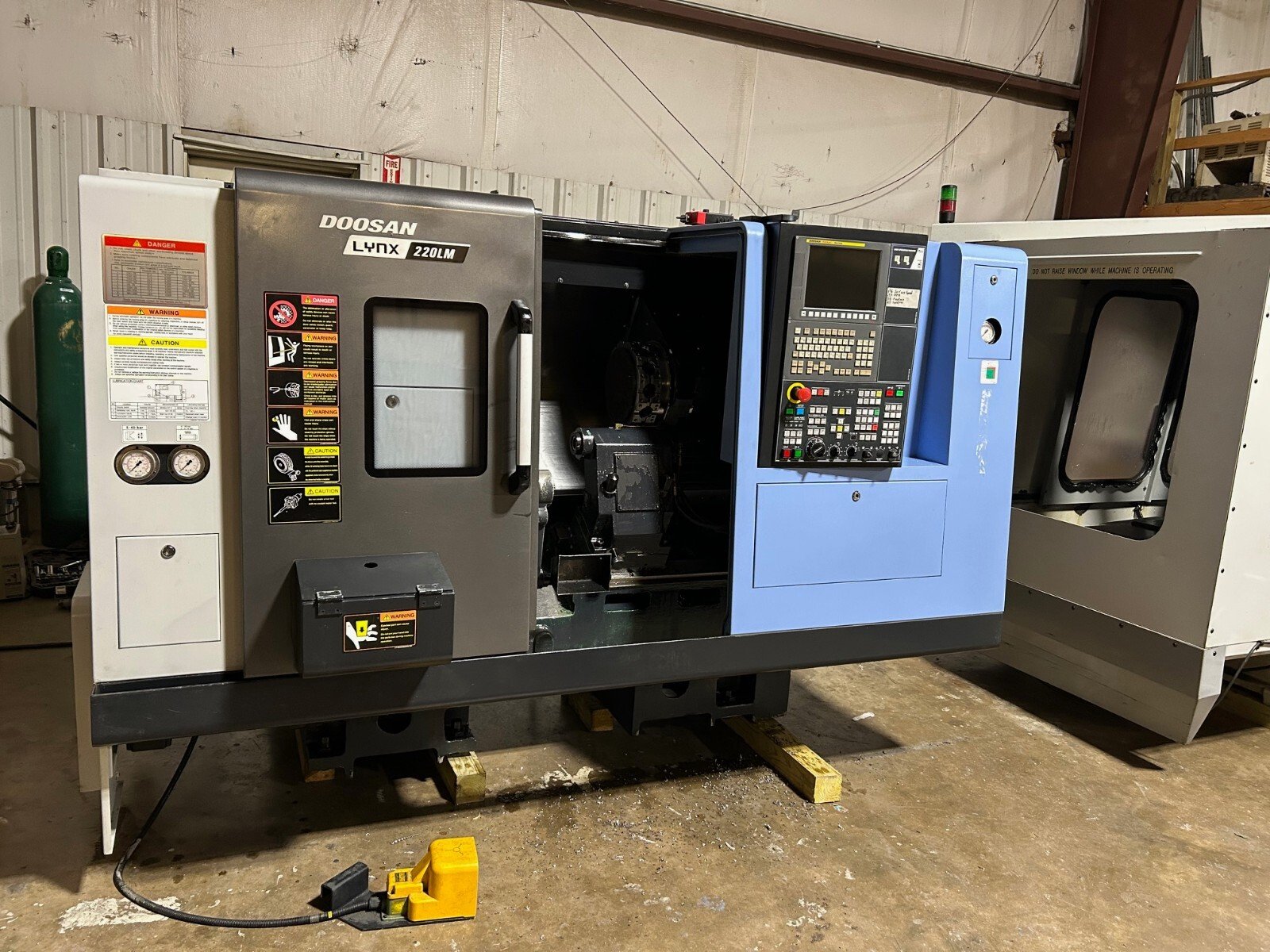

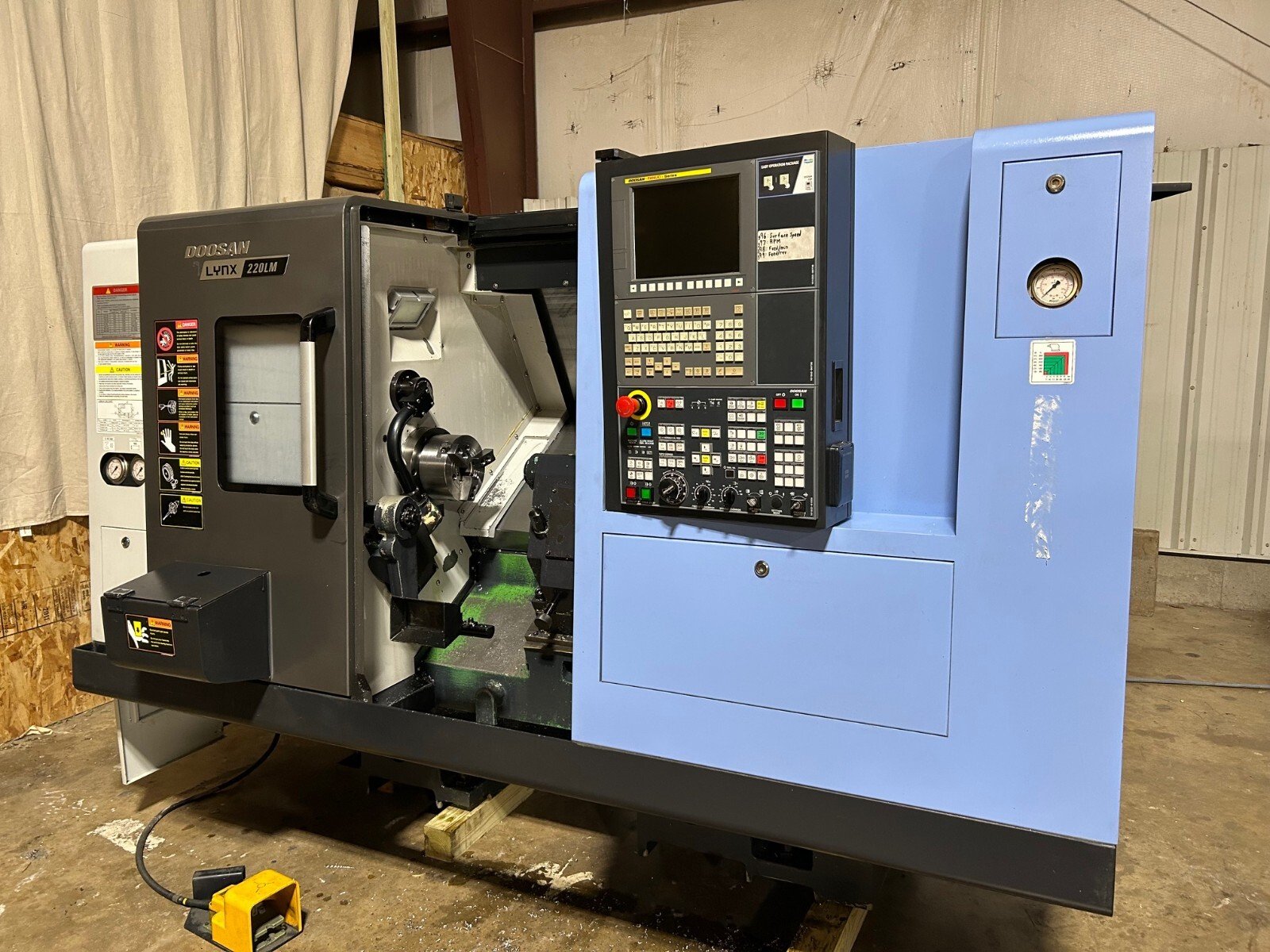

Doosan Lynx 220LMA CNC Lathe, 2015 – Milling, C Axis, Parts Catcher
$39,900.00
| Manufacturer | Doosan |
| Model | Lynx 220 LMA |
| Year | 2015 |
| Condition | Used |
| Model | Lynx 220 LMA |
| Swing Over Bed (in) | 20.1 |
| Swing Over Saddle (in) | 11.4 |
| Max. Turning Dia. (in) | 9.8 |
| Max Turning Length (in) | 20.1 |
| Spindle Bore / Bar Working Dia. (in) | 2.4 / 2 |
| X-Axis Travel (in) | 6.9 |
| Z-Axis Travel (in) | 21.7 |
| Max. Spindle Speed (rpm) | 6,000 |
| Spindle Nose | A2#5 |

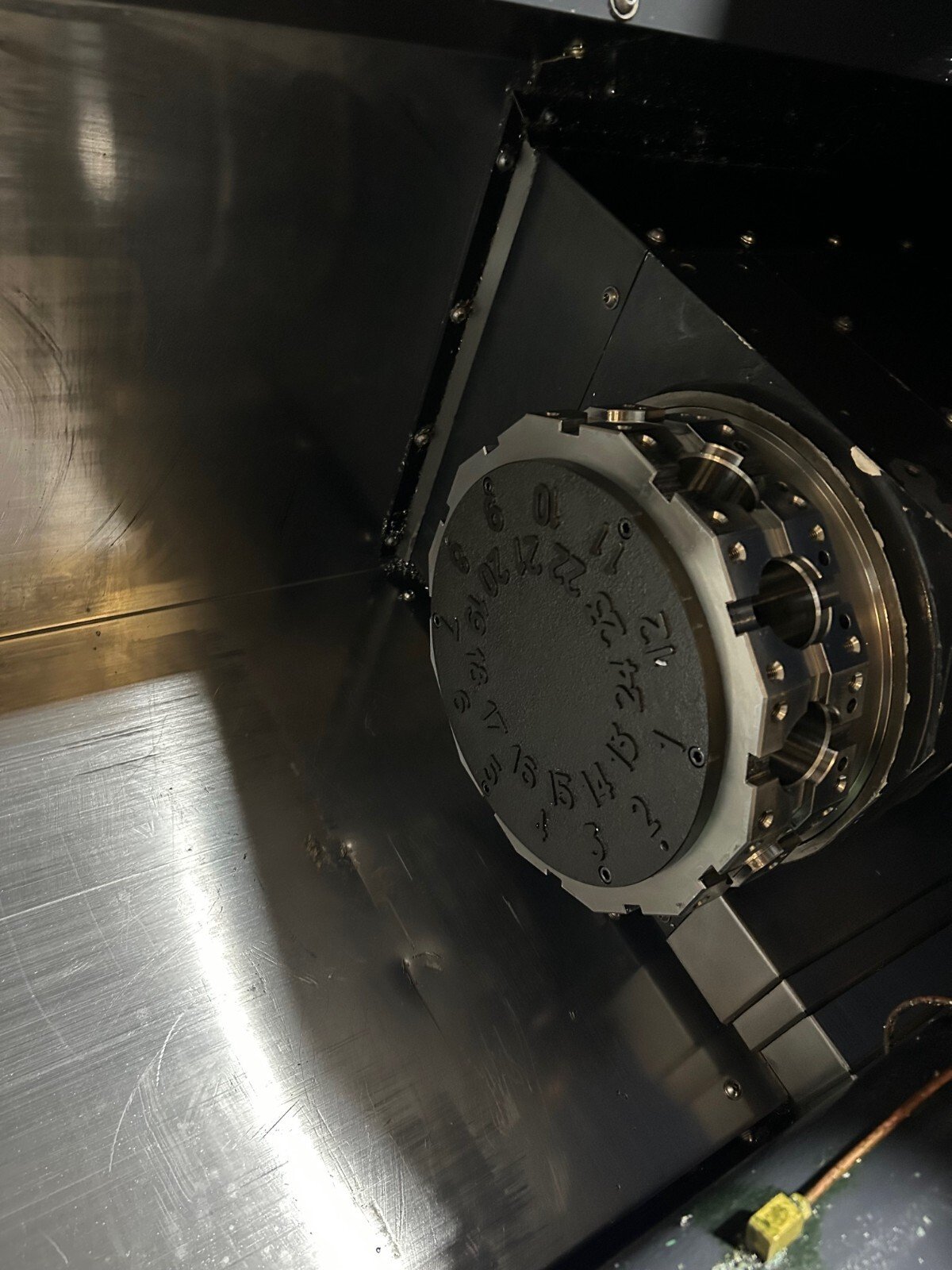

| Rotary Tool | 12 Position |
| Min. Spindle Indexing Angle (C-Axis) | 0.001 Degree Turret |
| Tailstock Quill (rpm) | 6,000 |

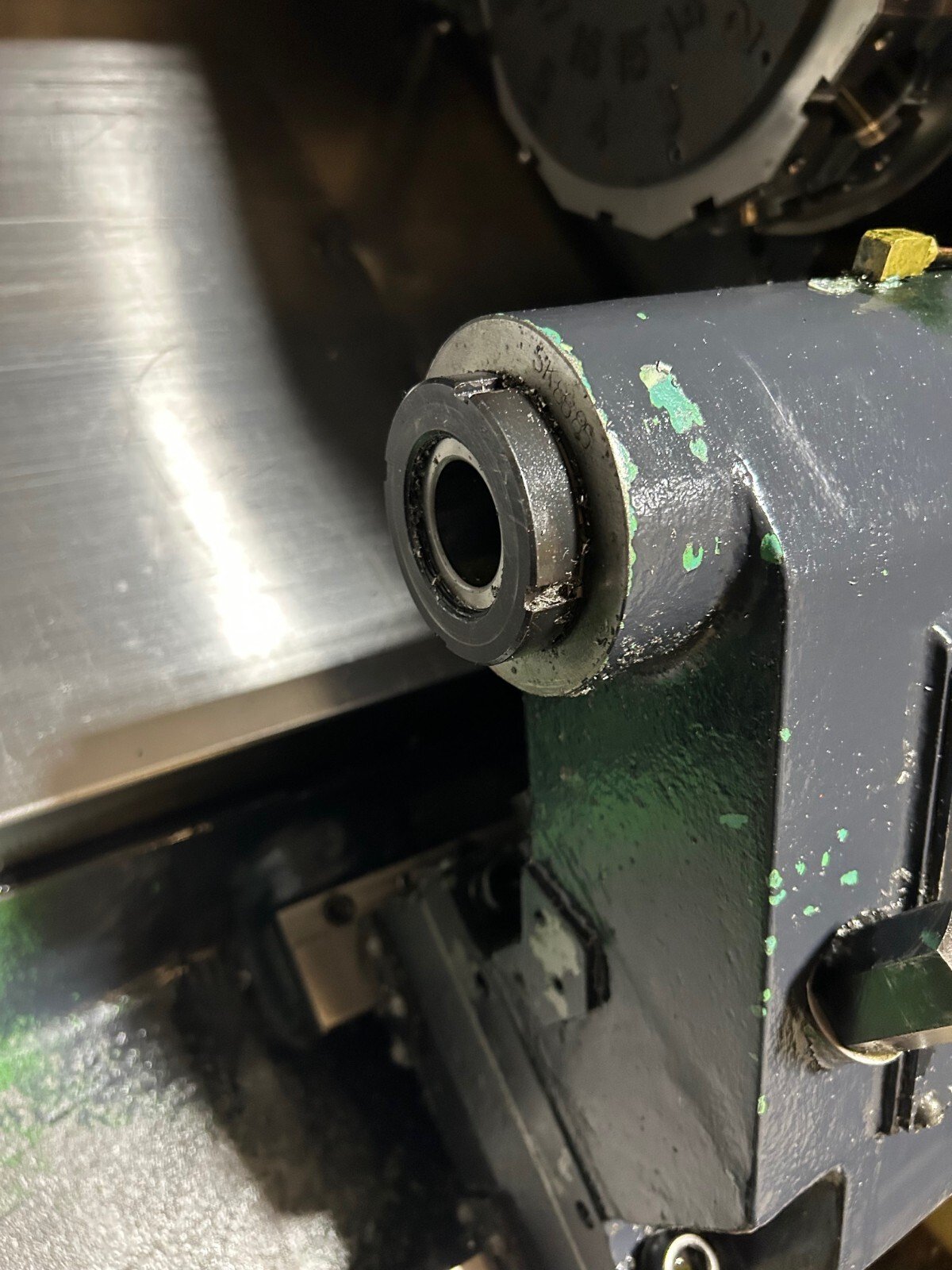

| Tailstock Quill Diameter (in) | 2.6 |
| Tailstock Quill Travel (in) | 3.1 |
| Main Spindle Motor (hp) | 20 |
| Rotary Tool Spindle Motor (hp) | 5 |
| Approx. Machine Dimensions (in) | 103.5L x 63W x 65.2H |
| Approx. Machine Weight (lbs) | 7,300 |
