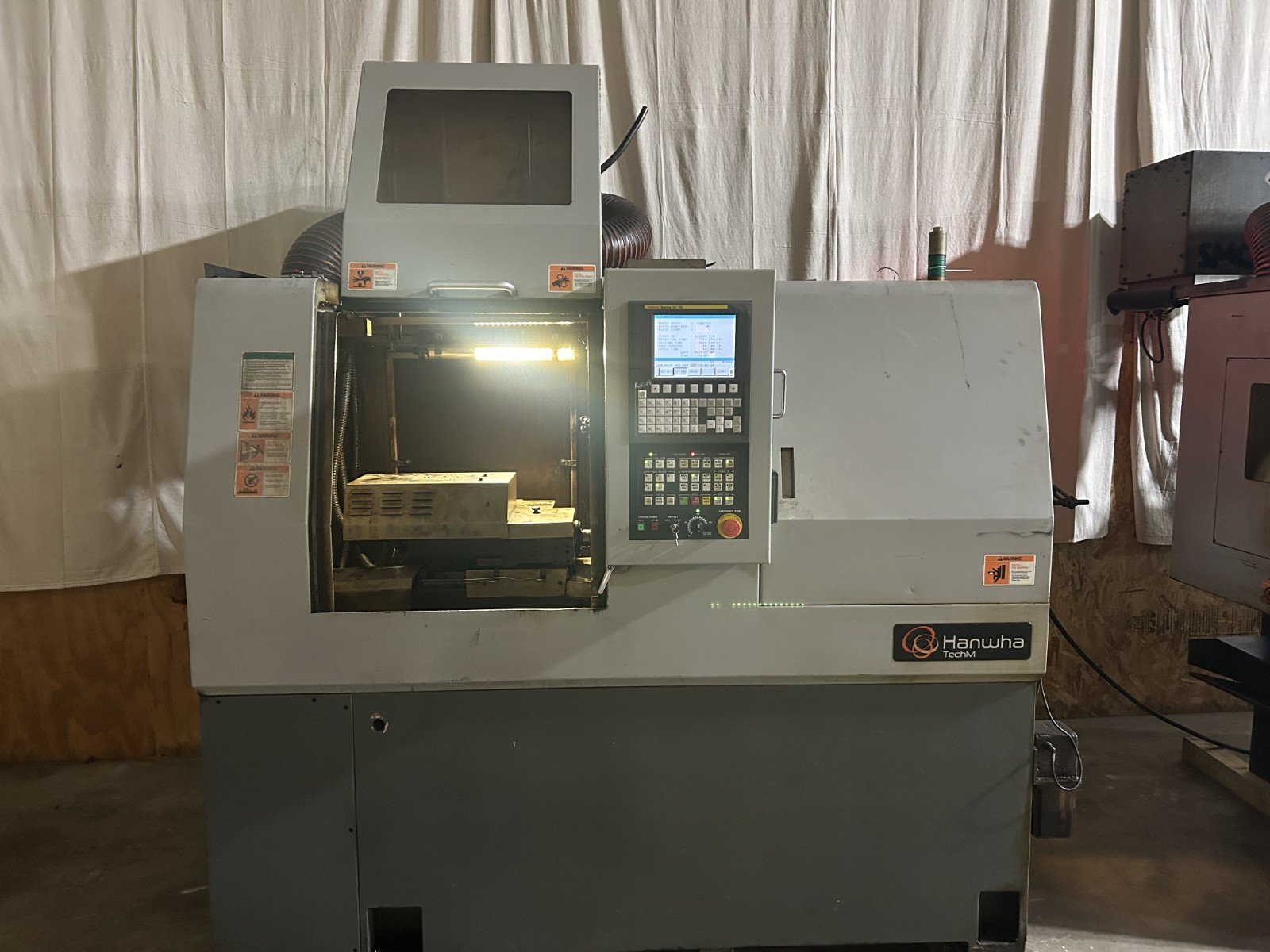

Hanwha SL-20S CNC Swiss Lathe, 2008 – Subspindle, 12′ Bar feeder

• Machine Type: CNC Swiss-type automatic lathe

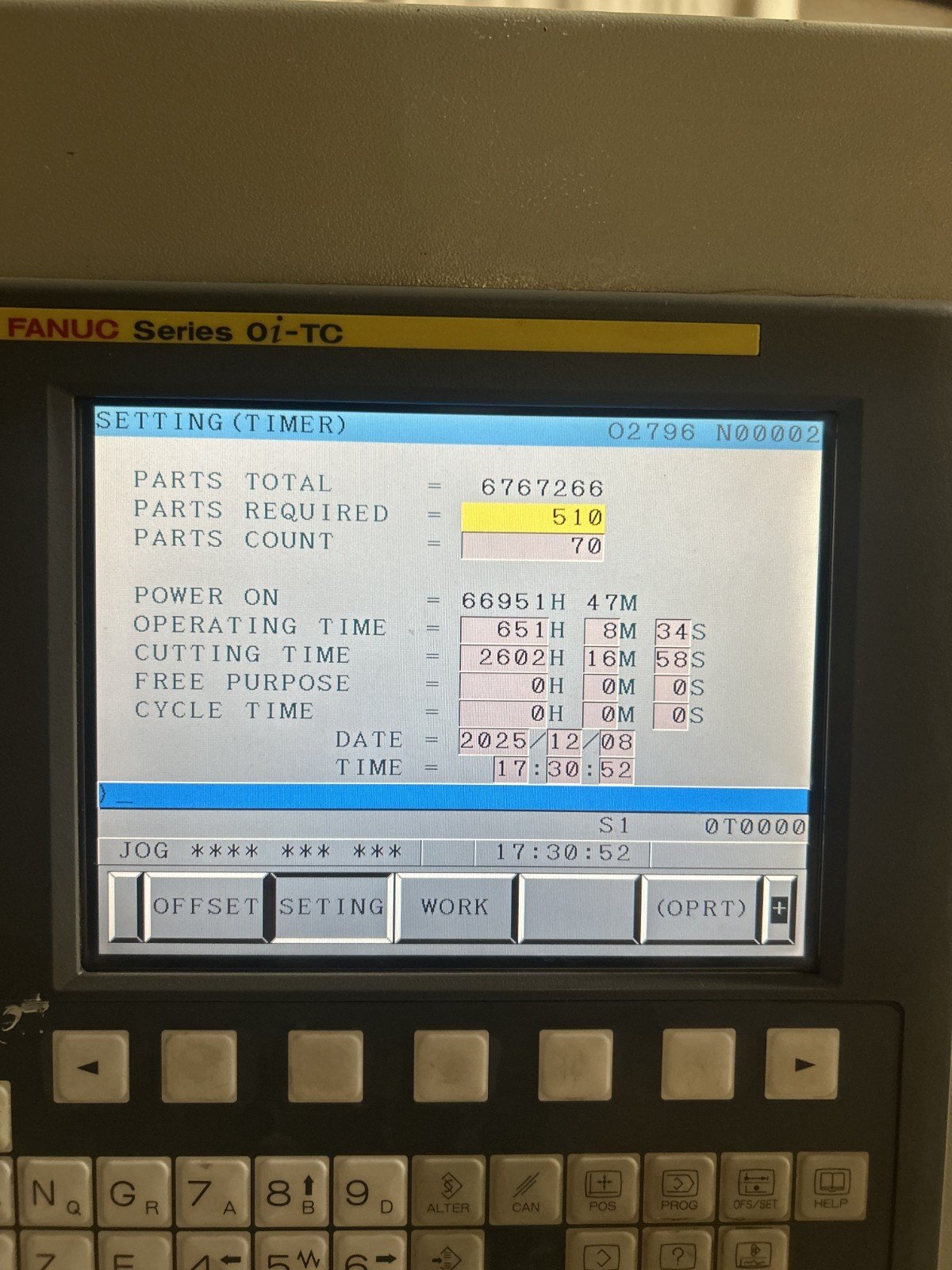

• Control: Typically equipped with a Fanuc 18iT or 18iTB CNC control

• Number of Axes: 5 or 6 (depending on configuration)

• Machine Weight: Approximately 5,954 lbs (2,700 kg)

• Dimensions (L x W x H): Approximately 118″ x 55″ x 78″ (3.0m x 1.4m x 2.0m)

Capacity & Spindles

• Max Machining Diameter: 20 mm (0.7874″)

• Max Turning Length (one chucking): 210 mm (8.2677″)

  • Main Spindle Speed: Up to 8,000 RPM

• Main Spindle Motor Power: 5 hp (3.7 kW)

• Sub-Spindle Speed: Up to 8,000 RPM

• Sub-Spindle Motor Power: 2.9 hp

Equipped With:

Bar Feeder
