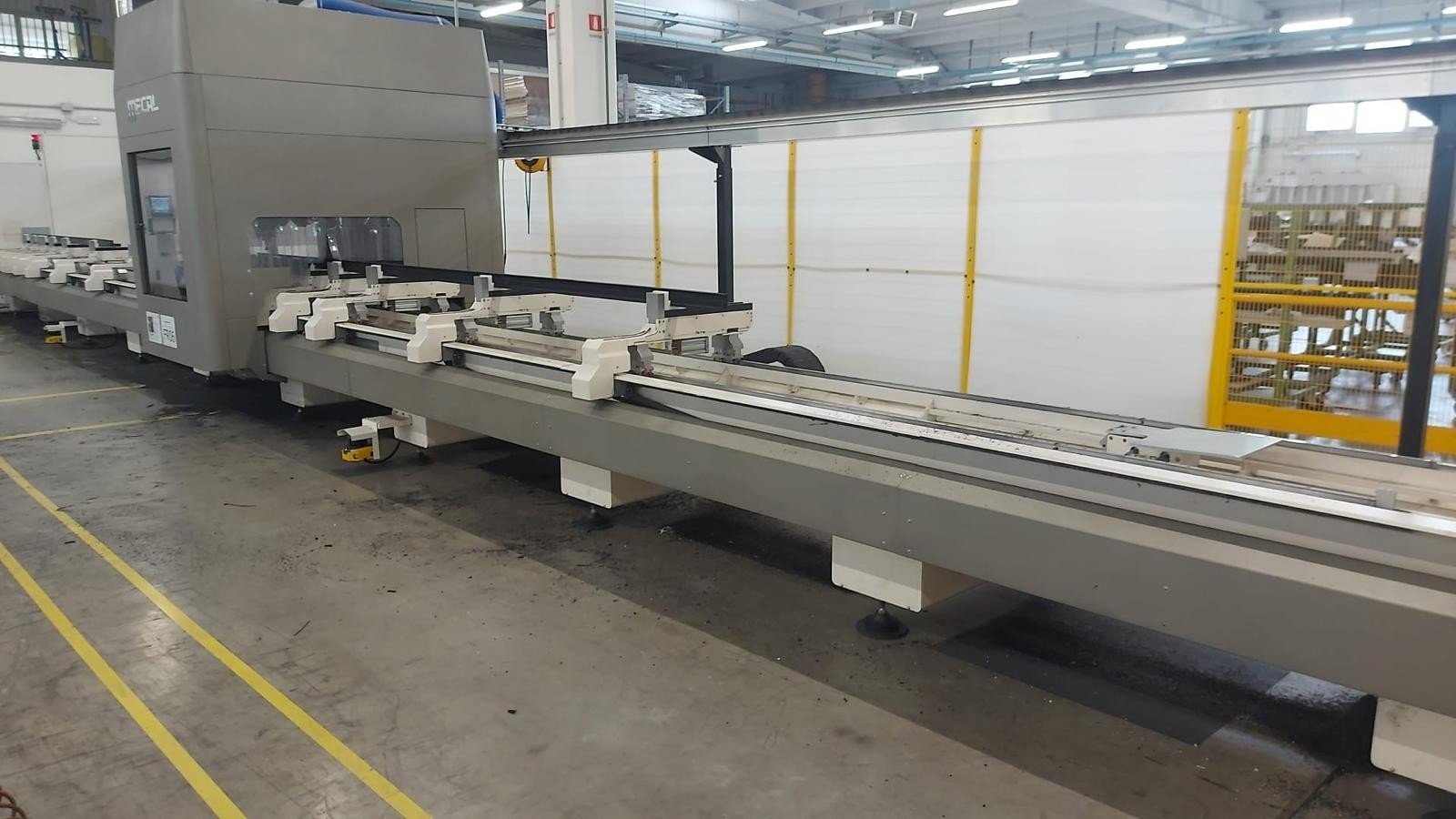

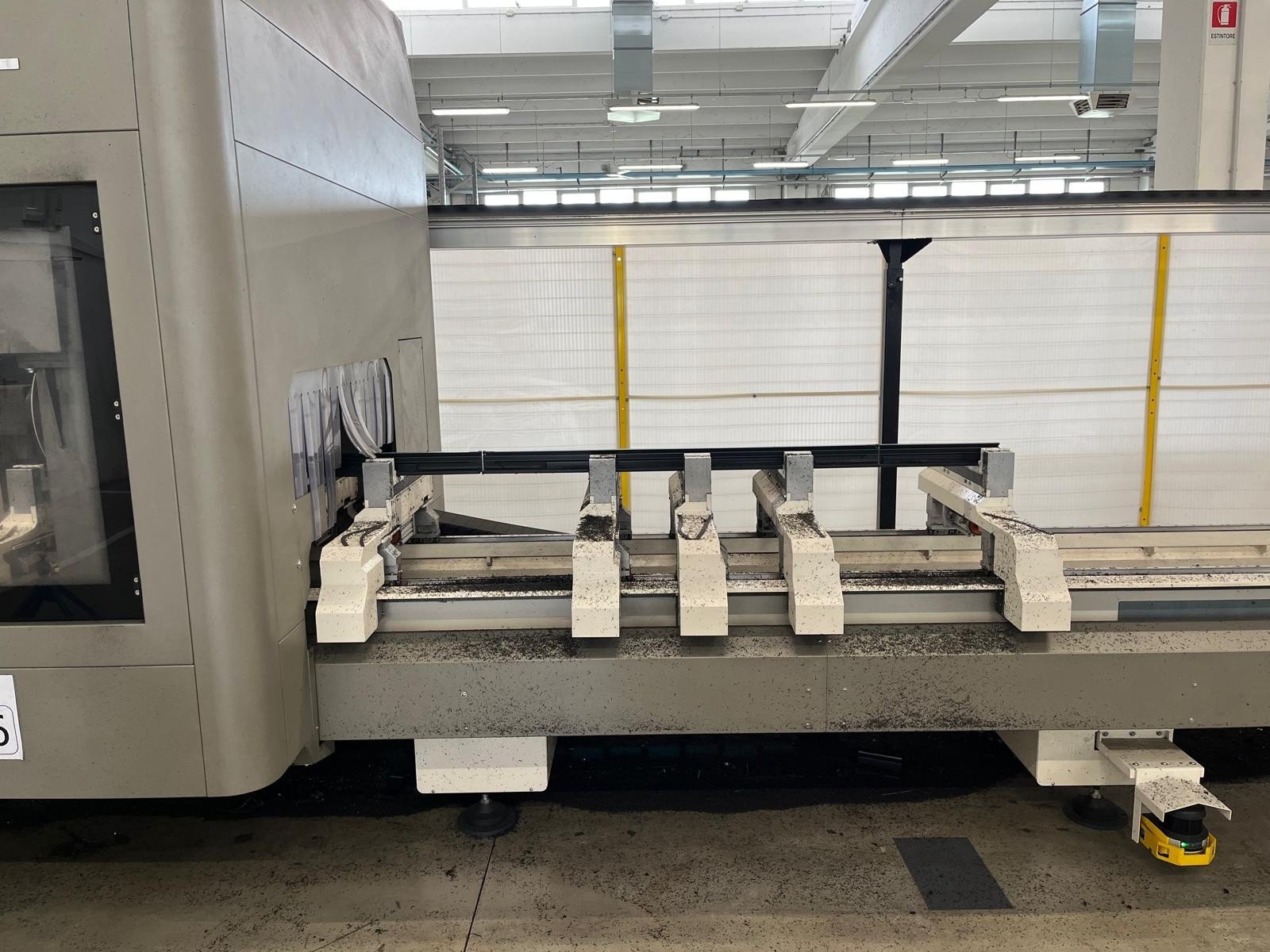

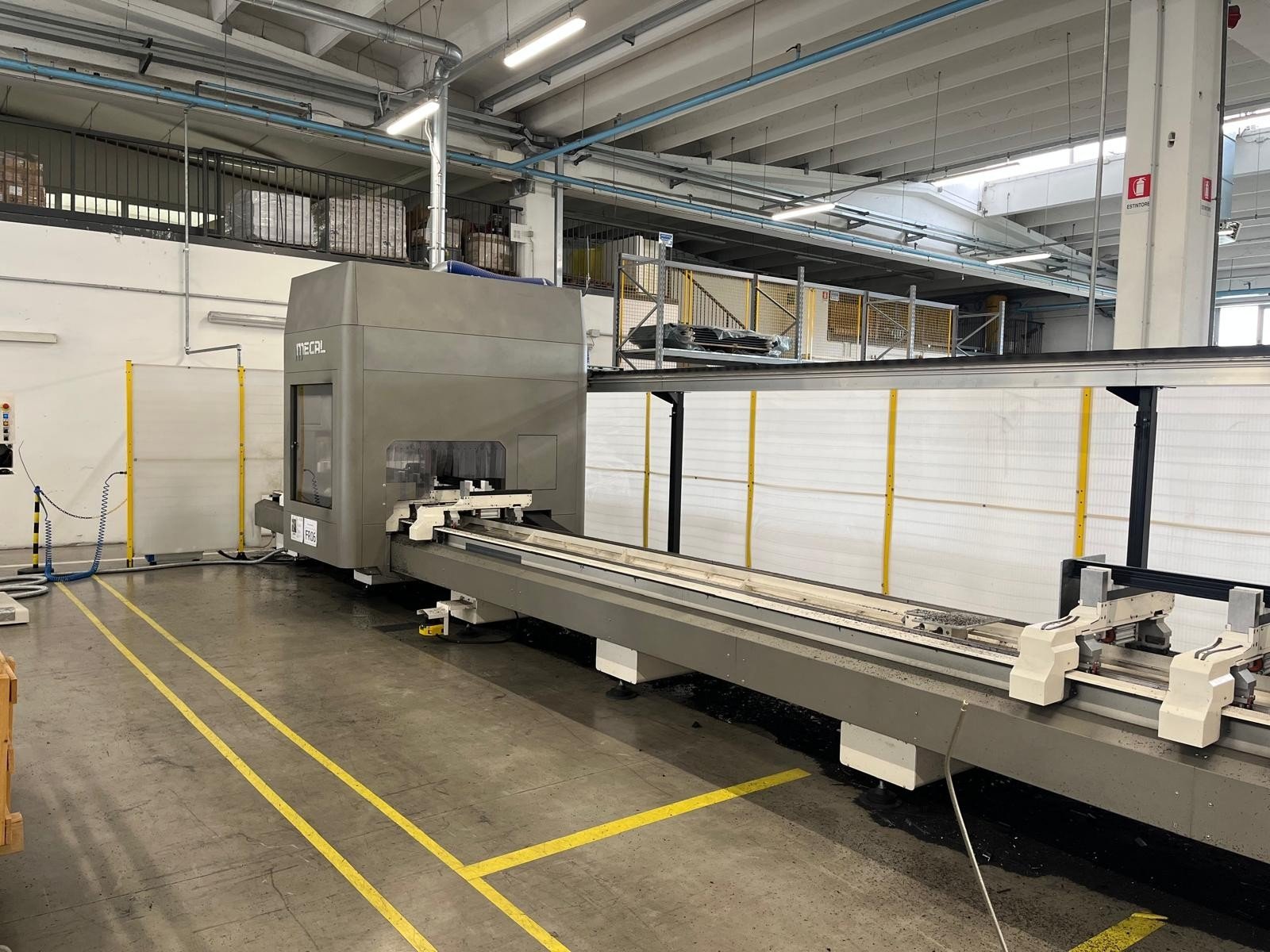

Mecal MC 304 Ariel-5A MDT, 5 Axis Machining Center, 2022 – 51′ of X, 16 Clamps, Install, Delivery, Training Included
$434,500.00
Purchase of this Machine includes Delivery to the buyers facility. Installation, training, and a 6 month warranty.
Equipped with:
Probing
24000 RPM spindle
15.7 Meter X travel

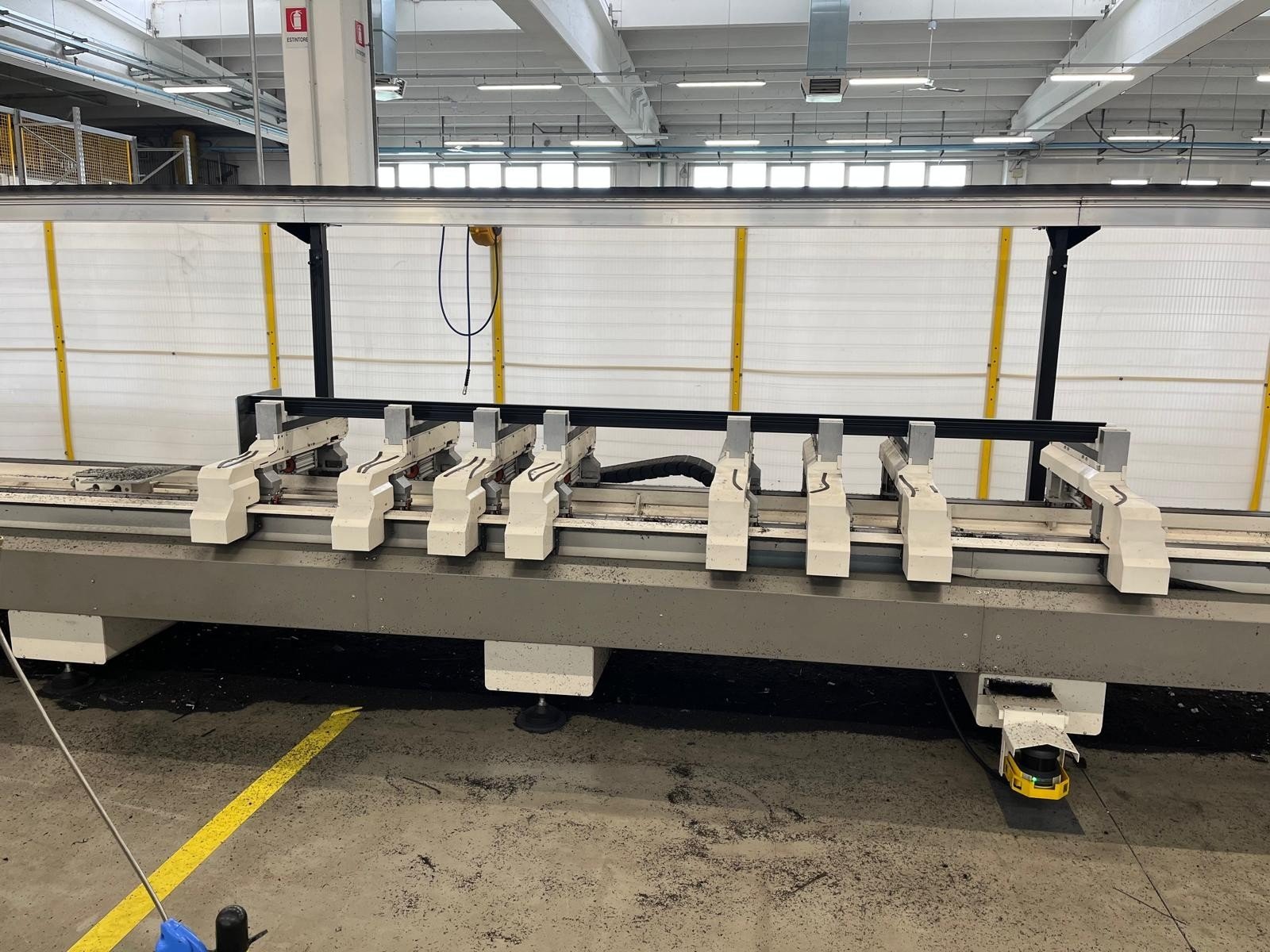

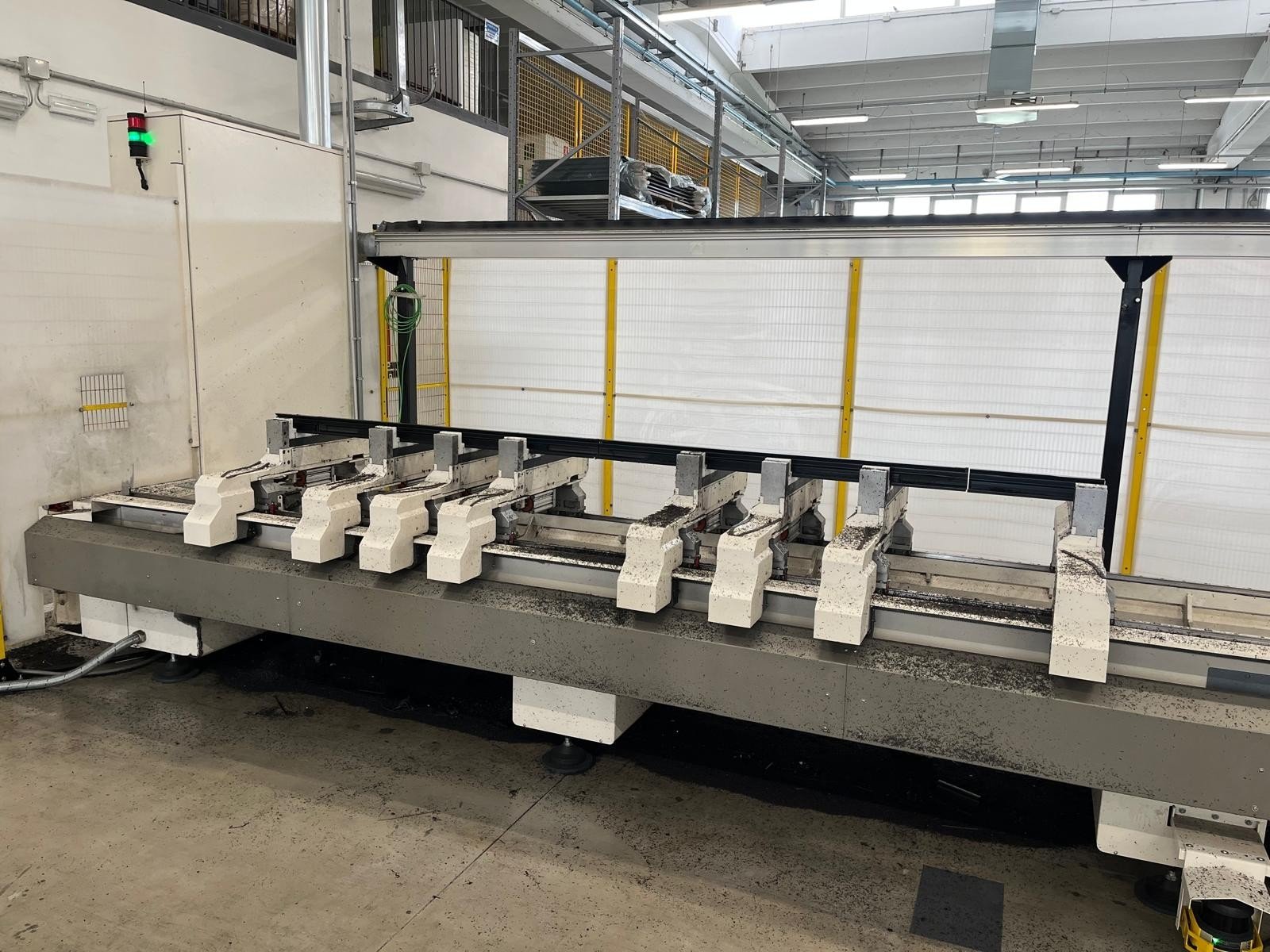

16 clamps
Intermediate support
Belt conveyor for scraps
Soundproof roof
CAD Link
Set of tools
Tool presetting
Nominal power (S1/S6) kW 18,0/20,0
Rated speed rpm 12000
rotation speed (max.) rpm 24000
Nominal torque (S1/S6) Nm 14,3/15,9
Tool-holder attachment cone HSK-63F
Axes stroke:
X axis total stroke: 15730 mm
X axis (longitudinal) mm 7480, 9480,
11480,
14900
Y-axis (transversal) mm 1410
Z-axis (vertical) mm 700
Positioning speed
X axis (longitudinal) m/1’ 80
Y-axis (transversal) m/1’ 70
Z-axis (vertical) m/1’ 40
C-axis (head rotation) °/1’ 8100
A-axis (spindle axis tilting) °/1’ 8100
Axis acceleration
X axis (longitudinal) m/s*s 1,67
Y-axis (transversal) m/s*s 1,47
Z-axis (vertical) m/s*s 2,2
Machinable faces
With direct tool (top face, side faces) 5
With direct tool (heads) 2

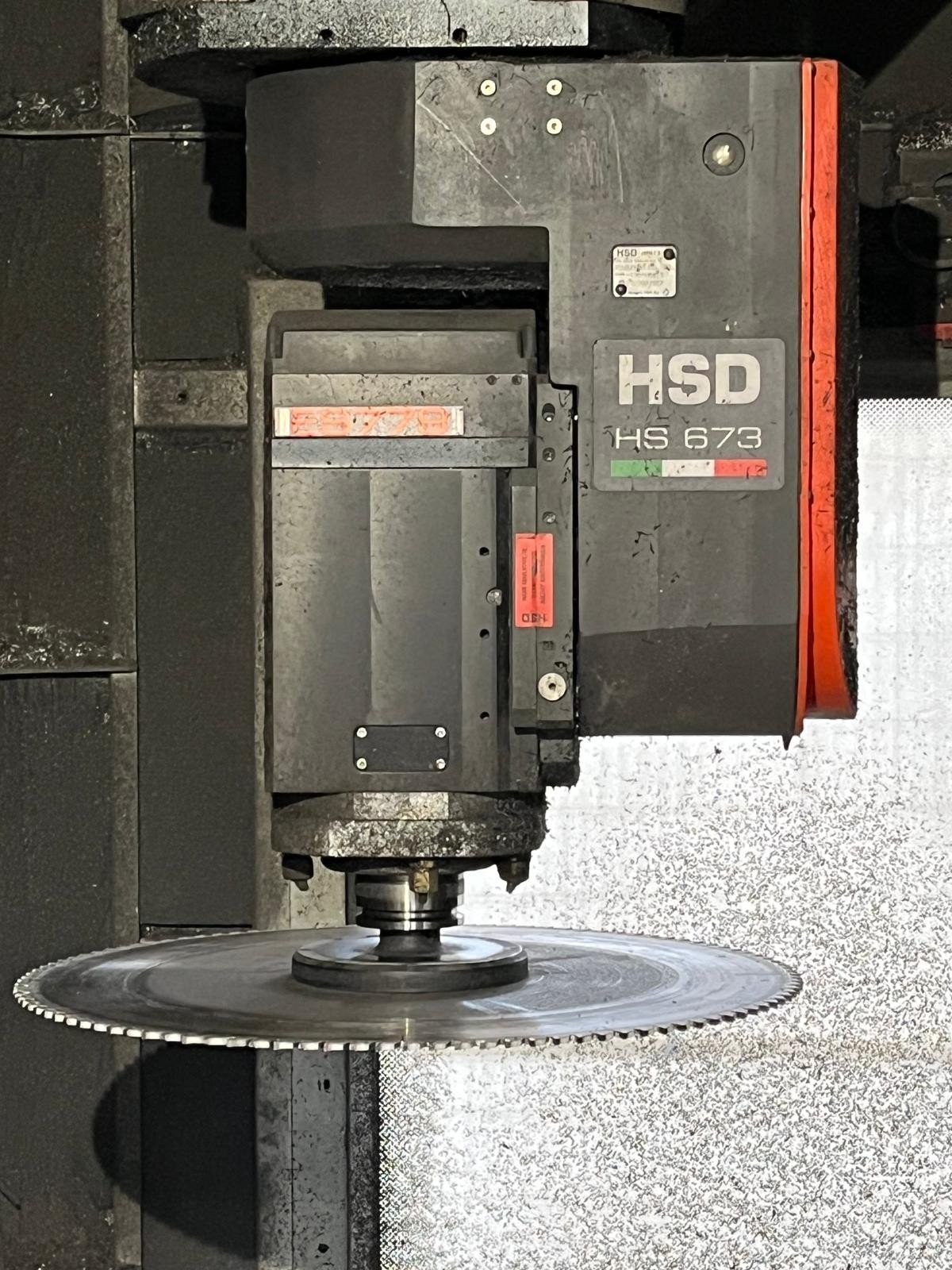

With disc cutter (heads) 2
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
